Product No: XK200

Product Name: Micro CNC Milling


  • High performance 4 axis milling CNC controller.
  • Using ARM high performance CPU and ultra large scale programmable devices FPGA, real time multi task control and hardware interpolation technology, to realize the high efficiency of μm-level precision processing.
  • The standard spec includes MPG hand wheel.
  • Control speed of G code
  • Selection of high -quality casting materials,more compact.
  • Semi-automatic lubrication system,protect the rail life.
  • High quality 3 axis step motor,high torque brushless motor.
  • Pre-installed 4 axis fast interface.
  • Best choice for DIY or Hobby user and Education & Training CNC.

Features

(1). High performance 4 axis milling CNC controlle.
(2).The standard spec includes electronic hand wheel.
(3).Selection of high -quality casting materials,more compact.
(4).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(5).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6).Network interface, supporting for remote monitoring and DNC file transfer processing
(7).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(9).DXF+G code template function, converting DXF automatically to G code for processing.
(10).With the automatic aligning instrument.
(11).Teaching function: Teaching+ simplified instruction programming,teaching methods in table format, that is simple and intuitive.
(12).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(13). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(14).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(15).7 inch super large colorful(800*480) LCD screen.
(16).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.



Technical parameters
X axis travel 210mm
Y axis travel 95mm
Z axis travel 200mm
Tool DIA. range 2-12mm
Control system Adtech 4640
Instruction DXF+G code template function, converting DXF automatically to G code for processing
MPG hand wheel 4 axis
Spindle motor 1.5kw
Spindle speed 24000r/min
The max moving speed 1200mm/min
The max feeding speed 500mm/min
Positioning accuracy 0.03mm
Repeatability accuracy 0.02mm
Transmission ball screw
Table size 390*92mm
T slot (amount*width) 38*12mm
Max. load 30kg
Table structure Full cast iron
Power 220VAC / 110VAC
Weight(NW/GW) 140/160kg
Overall dimension 845*580*850mm
Packing size 930*650*1100m

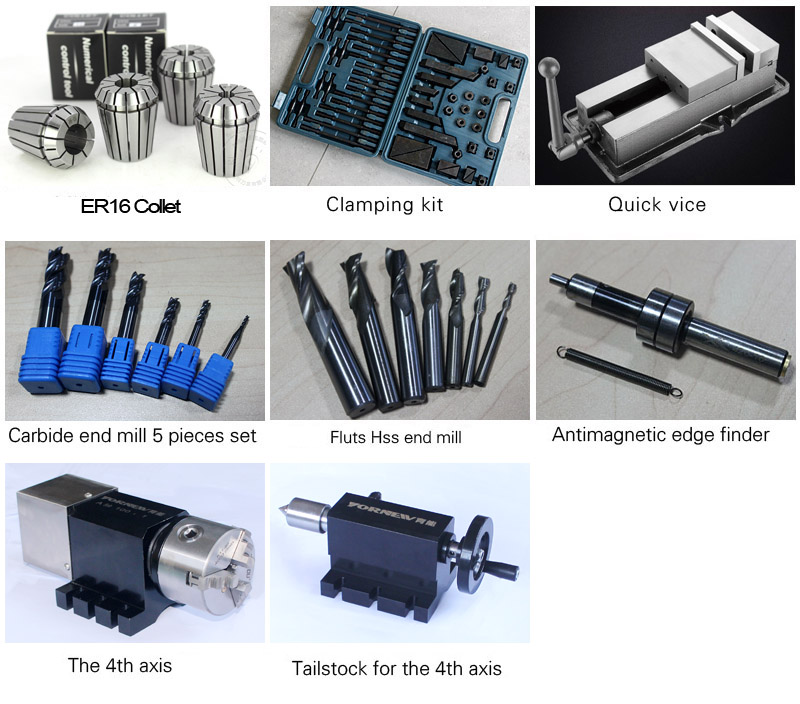

Micro CNC Milling Machines Optional Accessories

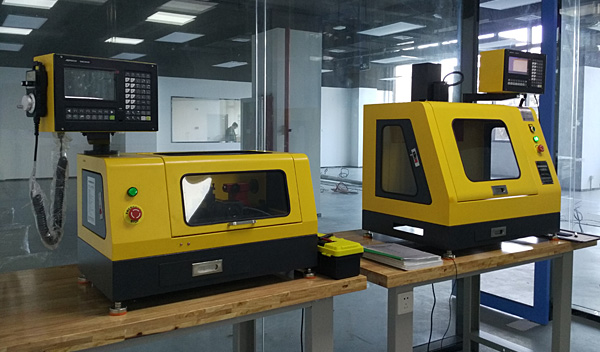

XK200 Micro CNC Milling
XK200 Micro CNC Milling
XK200 Micro CNC Milling
XK200 Micro CNC Milling
XK200 Micro CNC Milling
XK200 Micro CNC Milling
XK200 Mini CNC Milling
XK200 Mini CNC Milling
